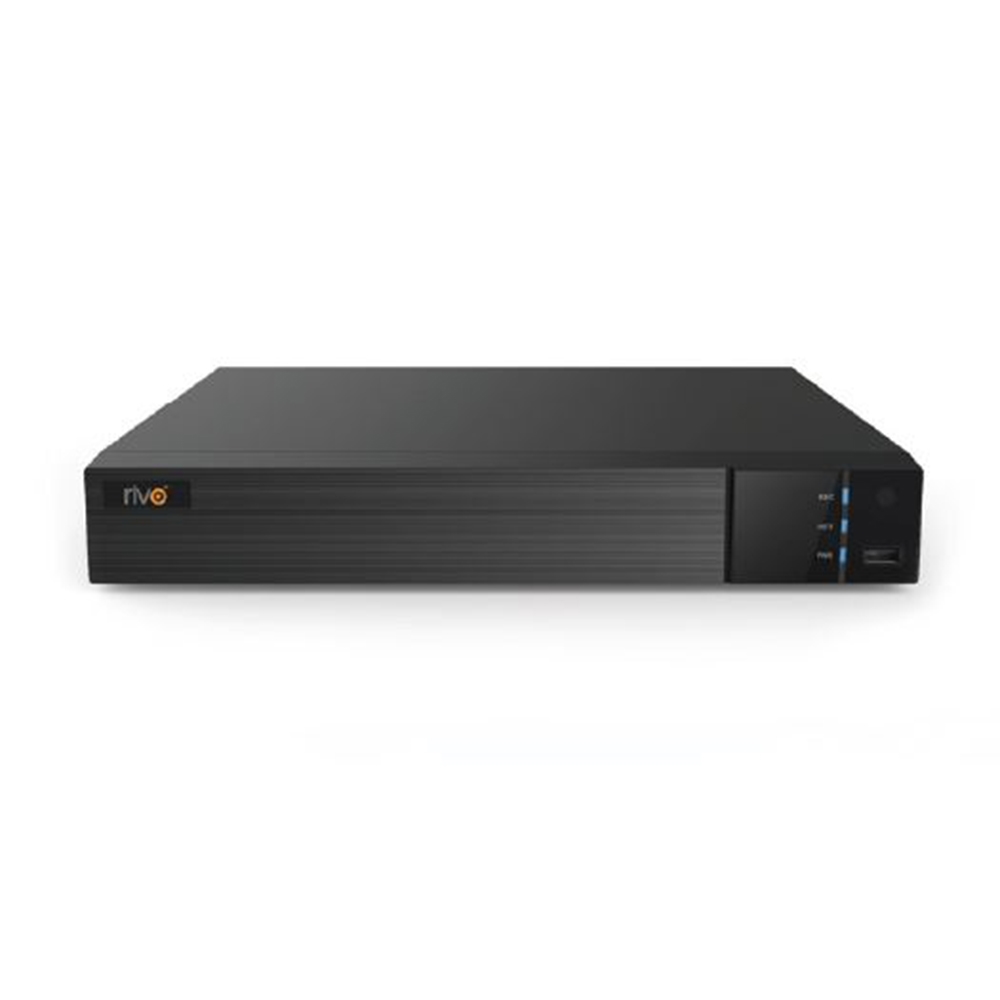

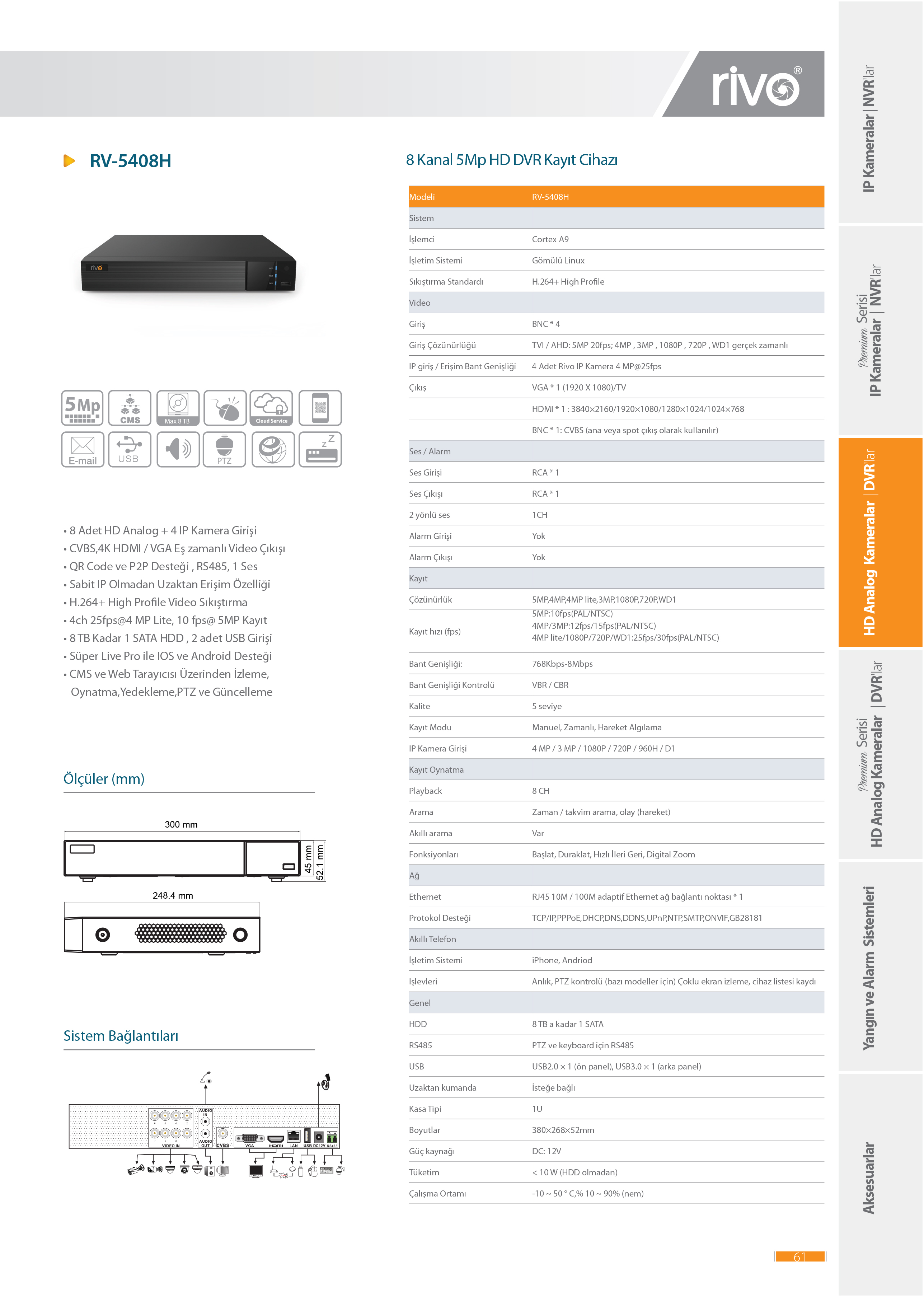

RV-5408H

8 Channel 5Mp HD DVR Recorder

  • 8 Channel 5Mp HD DVR Recorder
  • 5 mp
  • cloud service
  • cms
  • e mail
  • internet
  • max 8 tb
  • mobil
  • mouse
  • ptz
  • ses
  • usb
  • zzz

• 8 HD Analog + 4 IP Camera Inputs
• CVBS, 4K HDMI / VGA Simultaneous Video Output
• QR Code and P2P Support, RS485, 1 Audio
• Remote Access without Fixed IP
• Video Compression with H.264 + High Profile
• 4ch 25fps @ 4 MP Lite, 10 fps @ 5MP Recording
• Up to 8TB 1 SATA HDD, 2 pcs USB Input
• Super Live Pro with IOS and Android Support
• Monitoring via CMS and Web Browser,
Playback, Backup, PTZ and Update

Model

RV-5408H

System
Processor Cortex A9
OS Embedded Linux
Compression Standard H.264+ High Profile
Video
Login BNC * 4
Input Resolution TVI / AHD: 5MP 20fps; 4MP, 3MP, 1080P, 720P, WD1 real time
IP input / Access Bandwidth 4 Pcs Rivo IP Camera 4 MP @ 25fps
Exit VGA * 1 (1920 X 1080) / TV / HDMI * 1: 3840 × 2160/1920 × 1080/1280 × 1024/1024 × 768 / BNC * 1: CVBS (used as main or spot output)
Audio / alarm
Audio Input RCA * 1
Audio Output RCA * 1
2-way audio  1CH
Alar Introduction No
Alarm output No
Record
Resolution 5MP,4MP,4MP lite,3MP,1080P,720P,WD1
Recording speed (fps) 5MP:10fps(PAL/NTSC)
4MP/3MP:12fps/15fps(PAL/NTSC)
4MP lite/1080P/720P/WD1:25fps/30fps(PAL/NTSC)
IP camera Input 4 MP / 3 MP / 1080P / 720P / 960H / D1
Bant Genişliği: 768Kbps-8Mbps
Bandwidth Control:  VBR / CBR
Quality: 5 level
Recording Mode: Manual, Timed, Motion Detection
Playback
Playback 8 CH
Search Time / calendar search, event (motion)
Smart search Yes
functions Start, Pause, Fast Forward Forward, Digital Zoom
Network
Ethernet  RJ45 10M / 100M adaptif Ethernet ağ bağlantı noktası * 1
Protocol Support TCP/IP,PPPoE,DHCP,DNS,DDNS,UPnP,NTP,SMTP,ONVIF,GB28181

Smart Phone
OS  iPhone, Andriod
functions Instant, PTZ control (for some models) Multi-display
monitoring, device list registration
General
HDD Up to 8TB in 1 SATA
USB USB2.0 × 1 (front panel), USB3.0 × 1 (rear panel)
Remote control optional
 RS485 RS485 for PTZ and keyboard
Case Type  1U
Dimensions 380×268×52mm
Power source  DC: 12V
Consumption
Working Environment -10 ~ 50 ° C, 10% ~ 90% (humidity)
