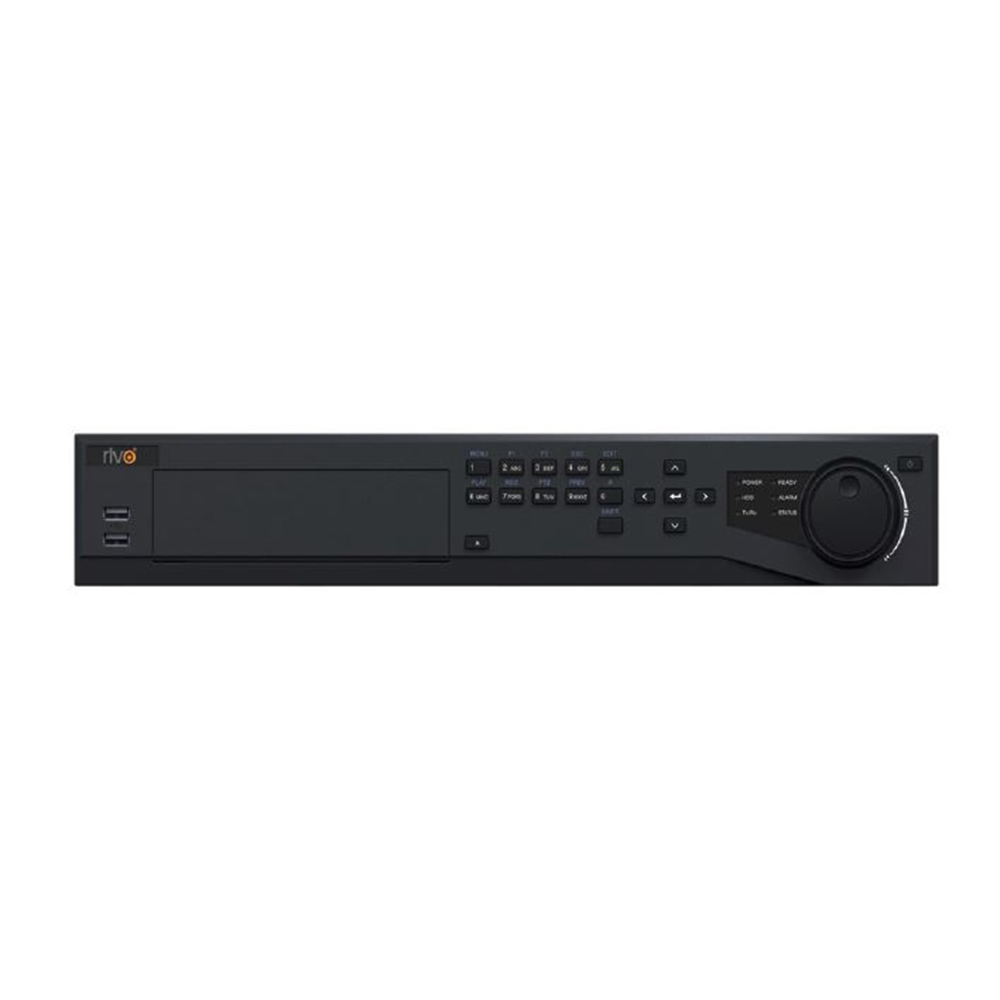

RV-NVR664NI-I8

64 Channel Network Video Recorder

  • 64 Channel Network Video Recorder
  • 8 mp
  • cloud service
  • cms
  • e mail
  • emap
  • internet
  • max 48 tb
  • mobil
  • ptz
  • ses
  • usb
  • zzz

• 64 IP Camera Inputs
• 12 Megapixel Recording Resolution
• Bandwidth from 320 Mbps
• 16 Channel Simultaneous Recording Playback
• Video Compression with H.265 + High Profile
• Remote Access without Fixed IP
• DHCP, DDNS, PPPoE Network Protocol Support
• 4K HDMI and VGA Video Output, RS232, RS485
• Up to 48TB 8 SATA HDD, 3 pcs USB Input
• Monitoring via CMS and Web Browser,
Playback, Backup, PTZ and Update

ModelRV-NVR664NI-I8
Video / Audio Input
IP video input: 64 ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: 320Mbps
Outgoing bandwidth: 256Mbps
Remote connection:  128
Video / Audio Output
HDMI output 4K (3840 * 2160) / 60Hz, 4K (3840 * 2160) / 30Hz, 1920 * 1080P /
60Hz, 1600 * 1200 / 60Hz, 1280 * 1024 / 60Hz, 1280 * 720 / 60Hz,
1024 * 768 / 60Hz
Recording resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA /
4CIF / DCIF / 2CIF / CIF / QCIF
VGA Output: 1920 * 1080P / 60Hz, 1280 * 1024 / 60Hz, 1280 * 720 / 60Hz, 1024
* 768 / 60Hz
Audio output: 1 ch, RCA (Linear, 1k,)
Synchronized Playback: 16 kanal
Decoding
Live view / Playback: 12MP / 8MP / 6MP / 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF /
DCIF / 2CIF / CIF / QCIF
Capability: 16 ch @ 1080P
Hard Disk
Sata: 8 SATA interface
Kapasite Her HDD için 6 TB’a kadar kapasite
External interface
Network Interface: 2 RJ-45 10/100 / 1000Mbps self-adaptive Ethernet interfaces
USB arabirimi: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm Input 16 channels
Alarm Output: 4-CH
General
Power source: AC100 240 V
Consumption Disk 30 W (without hard disk)
Operating temperature -10 ºC ~ +55 ºC
Working humidity % 10 -% 90
Safe: 19 Inch Rack Mounted 1.5U
