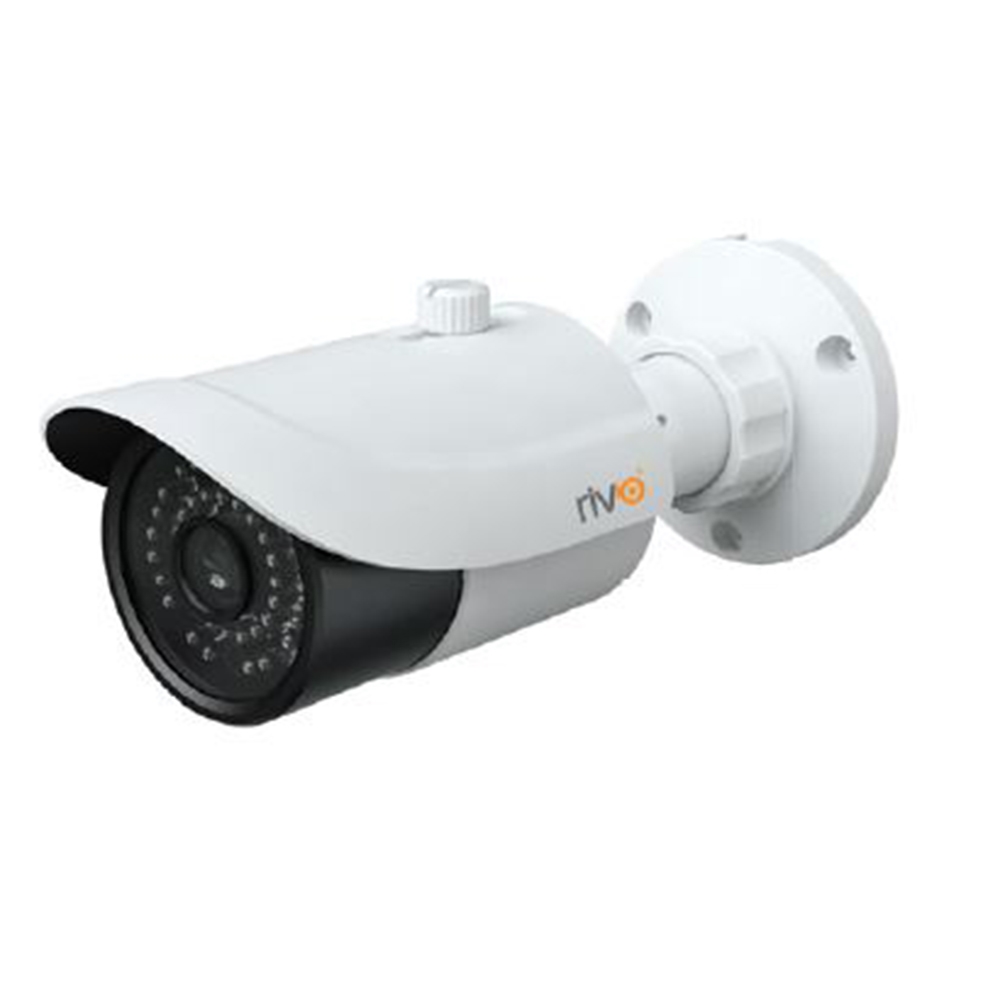

RV-2420HD

2 Megapixel HD Analog Bullet Camera

  • 2 Megapixel HD Analog Bullet Camera
  • 1 2,9 cmos
  • 1080 p full hd
  • agc
  • awb
  • backlight
  • d wdr
  • ıcr dn
  • ıp 66
  • osd

• 1 / 2.9 ess Progessive CMOS Sensor
• 2 Megapixel 1080p Resolution
• 0.01 Lux (Color), 0 Lux (IR on)
• 2.8-12mm Adjustable Lens
• Image Transfer with Coaxial Cable
• 36 IR LEDs, 30 mt Night Vision
• IP66, Day & Night, ICR, OSD
• AGC, BLC, DNR, D-WDR
• Power Supply DC 12V

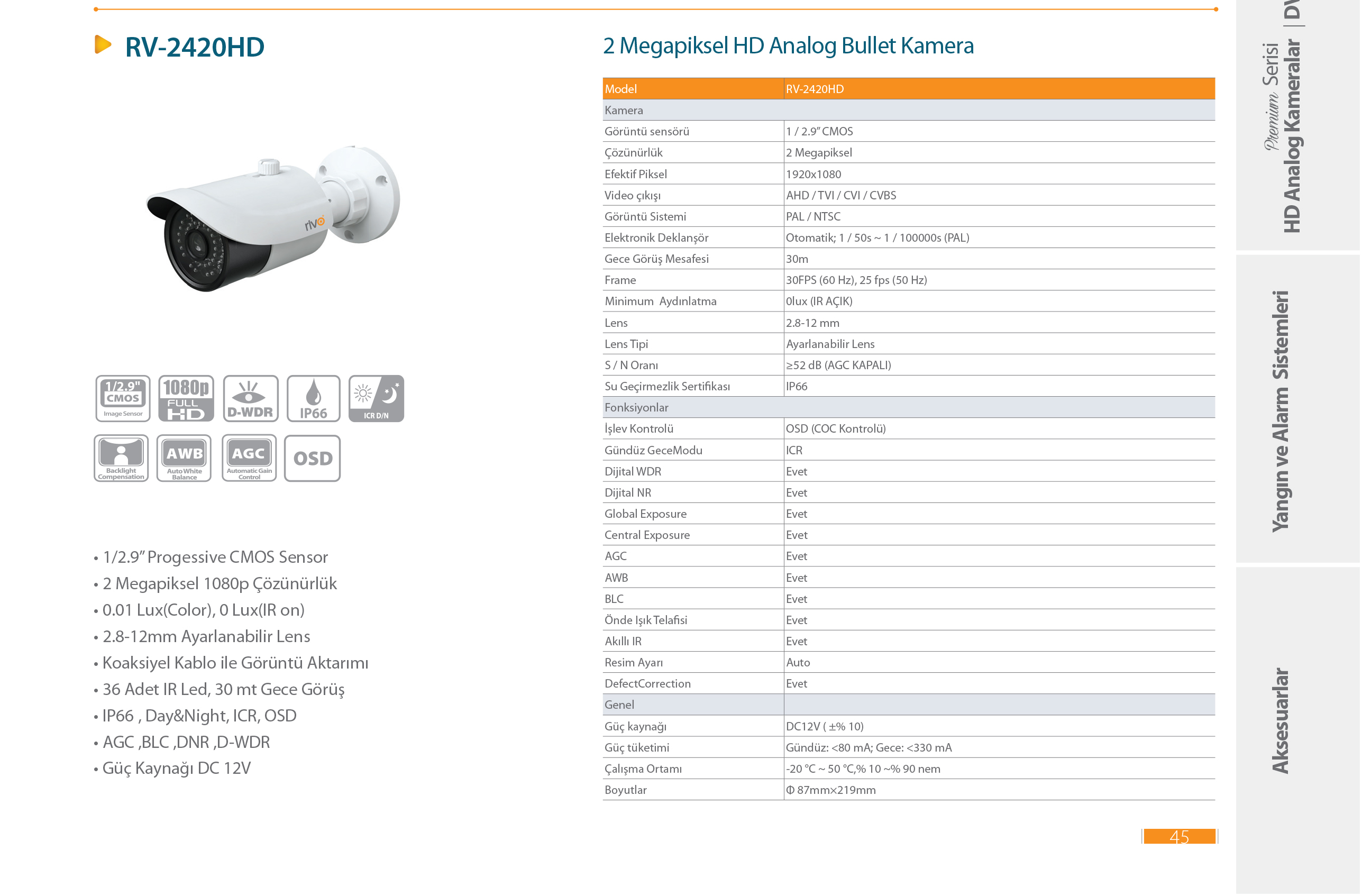

ModelRV-2420HD
Camera
Image sensor: 1 / 2.9” CMOS
Resolution 2 Megapiksel
Effective Piksel: 1920x1080
Video Output AHD / TVI / CVI / CVBS
Display System: PAL / NTSC
Elektronic Shuter: Automatik; 1 / 50s ~ 1 / 100000s (PAL)
Night Vision: 30m
Frame: 30FPS (60 Hz), 25 fps (50 Hz)
Minimum Lighting 0lux (IR On)
Lens 2.8 -1.2 mm
Lens Type Adjustable Lens
S / N Ratio ≥52 dB (AGC OFF)
Waterproof Certificate IP66
Functions
Function check:

OSD (COC Control)
Day Night Mode  ICR
Digital WDR Yes
Digital NR Yes
Global Exposure Yes
Central Exposure Yes
AGC Yes
AWB Yes
BLC Yes
Front Light Compensation Yes
Smart IR Yes
Image Setting Auto
DefectCorrection Yes
General
Power source:  DC12V ( ±% 10)
Power consumption: Day
Çalışma Ortamı : -20 ° C ~ 50 ° C, 10% ~ 90% humidity
Dimensions: Φ 87mm×219mm
