RV-7040HD

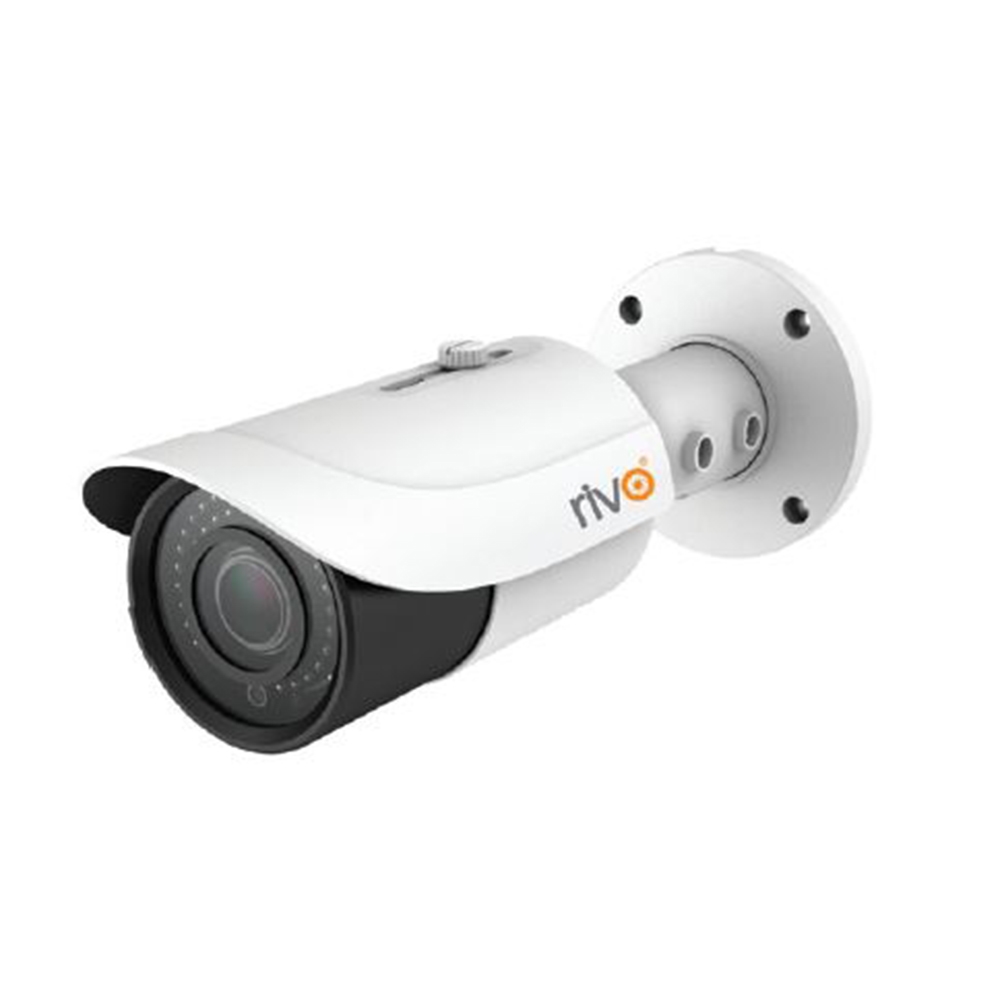

4 Megapixel HD Analog Bullet Camera

  • 4 Megapixel HD Analog Bullet Camera
  • 1 3 cmos
  • 4 mp
  • agc
  • awb
  • backlight
  • d wdr
  • ıcr dn
  • ıp 66
  • osd

• 1/3 ess Progessive CMOS Sensor
• 4 Megapixel Resolution
• 3.3-12mm Adjustable Lens
• Image Transfer with Coaxial Cable
• 48 pcs IR Led, 40 mt Night Vision
• IP66, Day & Night, ICR, OSD
• AGC, BLC, DNR, D-WDR
• Power Supply DC 12V

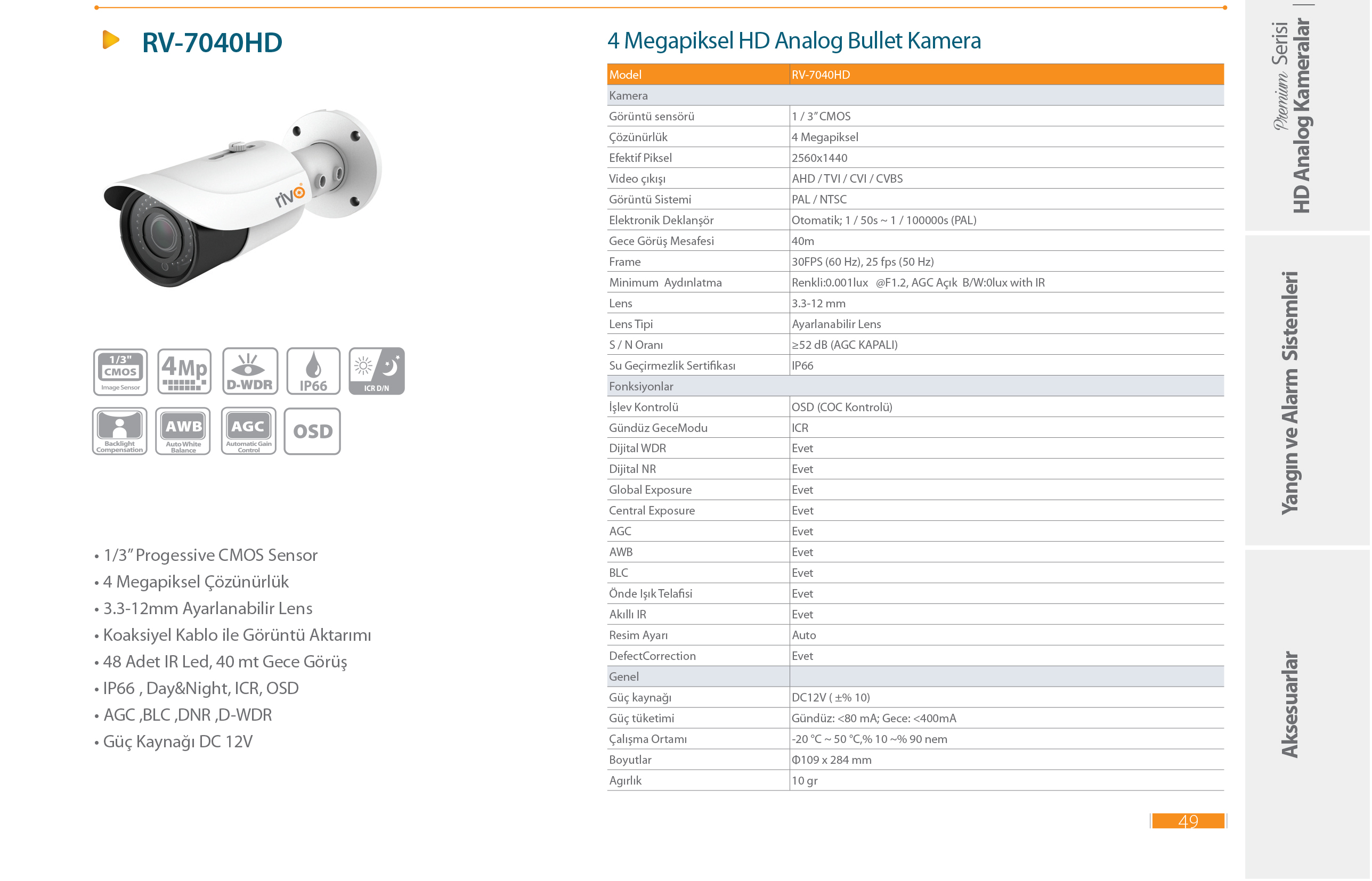

ModelRV-7040HD
Camera
Image Sensor 1 / 3” CMOS
Resolution 4 Megapiksel
Efectiv Piksel: 2560x1440
Video Output AHD / TVI / CVI / CVBS
Görüntü Sistemi: PAL / NTSC
Elektronic Shuter: Automatik; 1 / 50s ~ 1 / 100000s (PAL)
Night Vision: 40m
Frame: 30FPS (60 Hz), 25 fps (50 Hz)
Minimum Lighting Color: 0.001lux @ F1.2, AGC Open B / W: 0lux with IR
Lens 3.3-12 mm
Lens Type Ayarlanabilir  Lens
S / N Ratio ≥52 dB (AGC OFF)
Waterproof Certificate IP66
Functions
Functions Control OSD (COC Control)
Day Night Mode  ICR
Digital WDR Yes
Digital NR Yes
Global Exposure Yes
Central Exposure YEs
AGC Yes
AWB Yes
BLC YEs
Front Light Compensation Yes
Smart IR Yes
Picture Setting Auto
DefectCorrection Yes
General
Power source:  DC12V ( ±% 10)
Power consumption: Day
Çalışma Ortamı : -20 ° C ~ 50 ° C, 10% ~ 90% humidity
Dimensions: Φ109 x 284 mm
Weight: 10 gr
