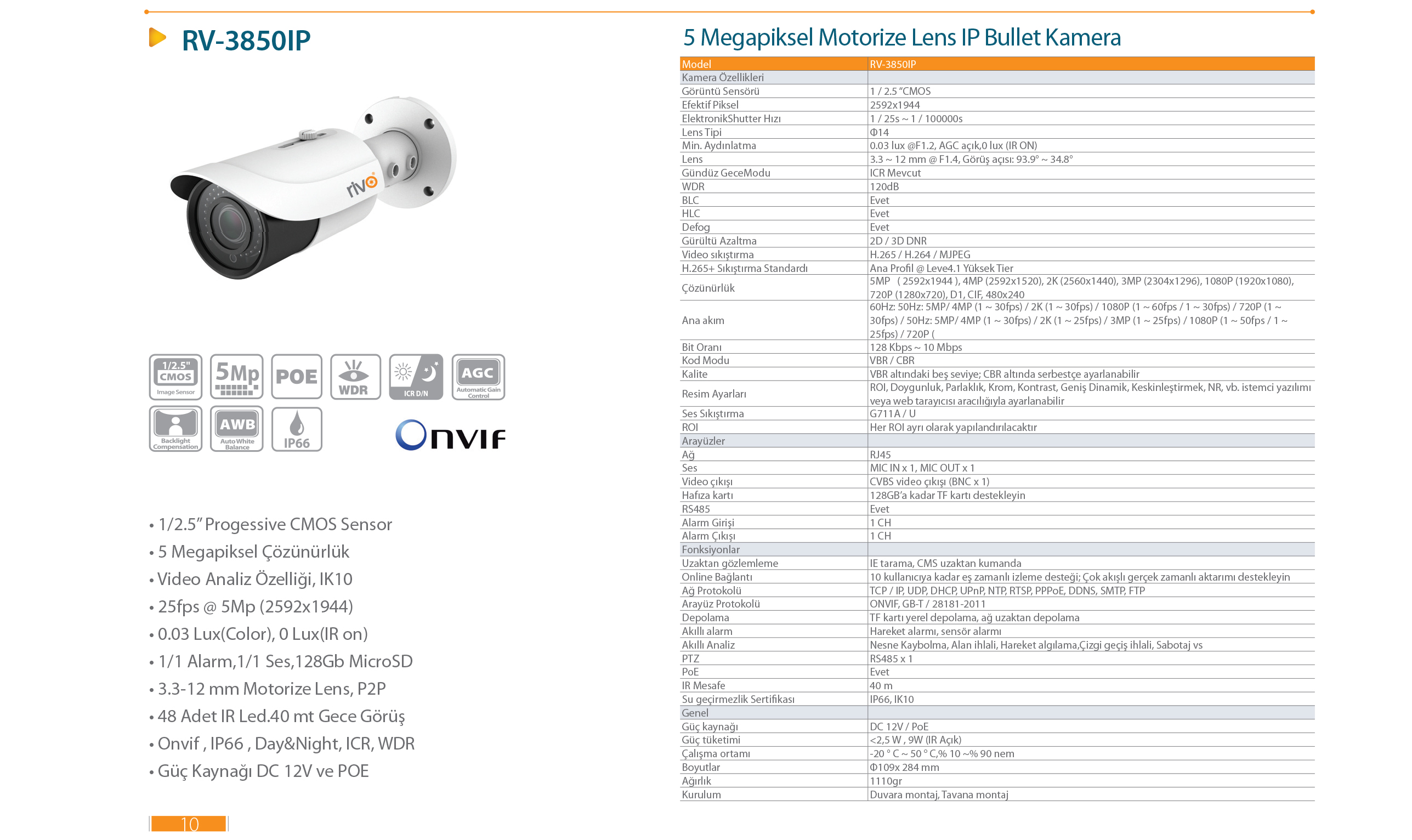

| Camera Features |
| Image Sensor |
1 / 2.5 “CMOS |
| Effectiv Piksel: |
2592x1944 |
| Electtronic Shutter Speed |
1 / 25s ~ 1 / 100000s |
| Lens Type |
Φ14 |
| Minumum Aydınlatma |
0.03 lux @F1.2, AGC açık,0 lux (IR ON) |
| Lens |
3.3 ~ 12 mm @ F1.4, Viewing angle: 93.9 ° ~ 34.8 ° |
| Day Night Mode |
ICR Mevcut |
| WDR: |
120dB |
| BLC: |
Yes |
| HLC: |
Yes |
| Defog: |
Yes |
| Noise Reduction |
2D/3D DNR |
| Video compression |
H.265 / H.264 / MJPEG |
| H.265 + Compression Standard |
Main Profi l @ Leve4.1 High Tier |
| Resolution |
5MP ( 2592x1520 ), 2K ( 2560x1440 ), 3MP ( 2304x1296 ), 3MP ( 2048x1536 ), 1080P
( 1920x1080 ), 720P ( 1280x720 ), D1, CIF, 480x240 |
| Main current |
60Hz : 4MP( 1 ~ 30fps ) / 2K( 1 ~ 20fps ) / 3MP / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps)
50Hz: 4MP( 1 ~ 0fps ) / 2K( 1 ~ 20fps ) /3MP / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps) |
| Bit Rate |
128Kbps ~ 10Mbps |
| Code Mode |
VBR / CBR |
| Quality |
Five levels below the VBR; Freely adjustable under CBR |
| Image Settings |
ROI, Saturation, Brightness, Chrome, Contrast, Wide Dynamic, Sharpen, NR, etc. Can be adjusted through client software or web browser |
| Ses Sıkıştırma |
G711A / U |
| ROI |
Each ROI will be configured separately |
| interfaces |
| Network |
RJ45 |
| Sound |
MIC IN x 1 |
| Video Out |
CVBS video output (BNC x 1) |
| Memory card |
Support up to 128GB TF card |
| RS485 |
Yes |
| Alarm Input |
1 HC |
| Alarm Output |
1HC |
| Functions |
| Remote monitoring |
IE scan, CMS remote control |
| Online Connection |
Simultaneous monitoring support for up to 10 users; Supports multi-stream streaming |
| Network Protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP, FTP |
| Interface Protocol |
ONVIF ,GB-T / 28181-2011 |
| Storage |
TF card local storage, network remote storage |
| Smart alarm |
Motion alarm, sensor alarm |
| Smart Analysis |
Object Disappearance, Field Violation, Motion Detection, Line Crossing Violation, Sabotage etc. |
| PoE |
Yes |
| IR Distance |
40 m |
| Waterproofing certificate |
IP66, IK10 |
| General |
| Power source |
DC12V / PoE |
| Power consumption |
<2,5 W , 6W (IR Açık) |
| Working environment |
-20 ° C ~ 50 ° C, 10% ~ 90% humidity |
| Dimensions |
Φ109x 284 mm |
| Weight |
1110 gr |
| Setup |
Wall mounting, Ceiling mounting |
