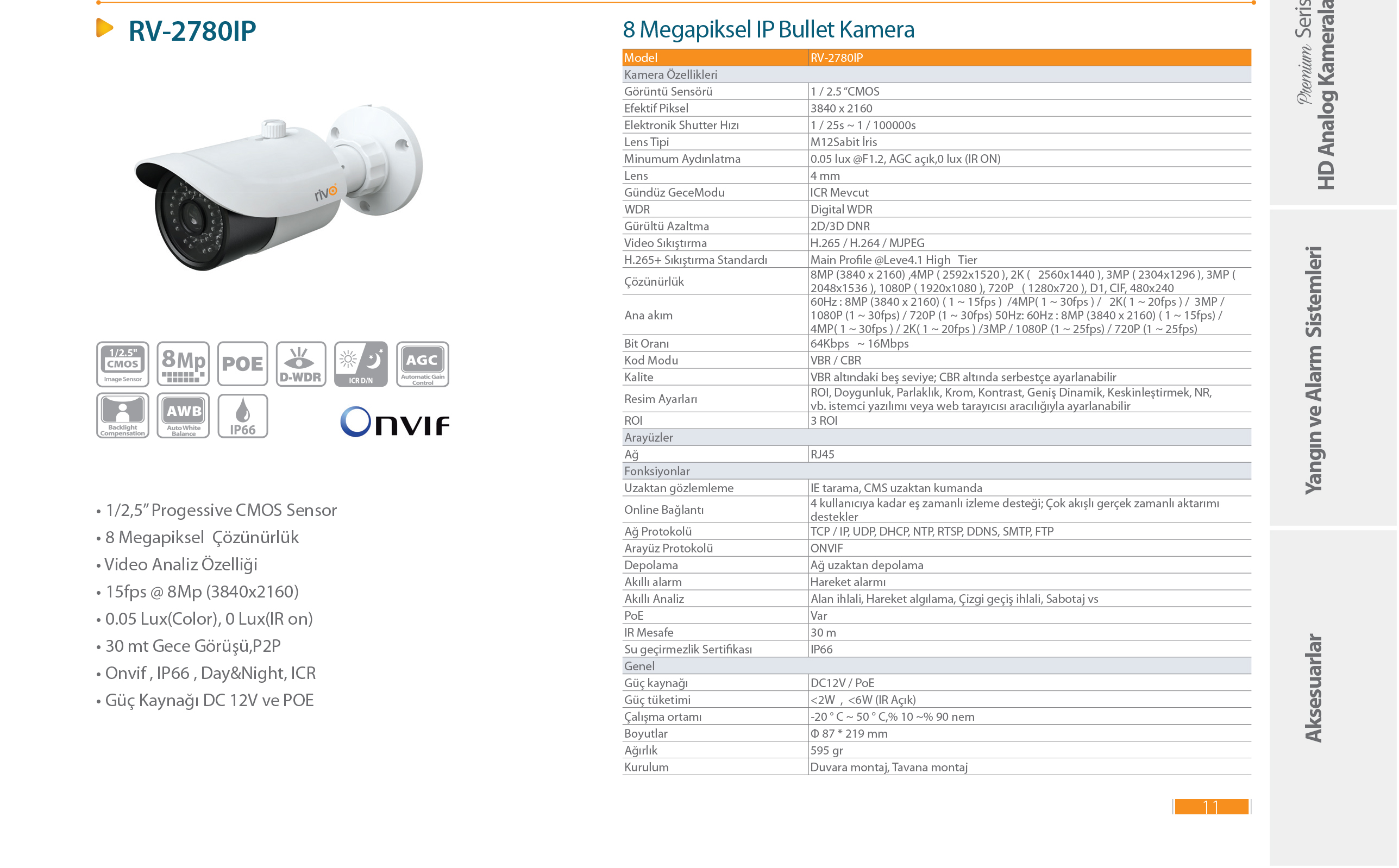

| Camera Features |
| Image Sensor |
1 / 2.5 “CMOS |
| Effective Piksel: |
3840 x 2160 |
| Electronic Shutter Speed |
1 / 25s ~ 1 / 100000s |
| Lens Type |
M12Sabit İris |
| Min Lighting |
0.05 lux @F1.2, AGC açık,0 lux (IR ON) |
| Lens |
4 mm |
| Day Night Mode |
ICR Available |
| WDR: |
Digital WDR |
| Noise Reduction |
2D/3D DNR |
| Video compression |
H.265 / H.264 / MJPEG |
| H.265 + Compression Standard |
H.265 / H.264 / MJPEG |
| Resolution |
8MP (3840 x 2160) ,4MP ( 2592x1520 ), 2K ( 2560x1440 ), 3MP ( 2304x1296 ), 3MP (
2048x1536 ), 1080P ( 1920x1080 ), 720P ( 1280x720 ), D1, CIF, 480x240 |
| Main current |
60Hz : 4MP( 1 ~ 30fps ) / 2K( 1 ~ 20fps ) / 3MP / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps)
50Hz: 4MP( 1 ~ 0fps ) / 2K( 1 ~ 20fps ) /3MP / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps) |
| Bit Rate |
64Kbps ~ 16Mbps |
| Code Mode |
VBR / CBR |
| Quality |
Five levels below the VBR; Freely adjustable under CBR |
| Image Settings |
ROI, Saturation, Brightness, Chrome, Contrast, Wide Dynamic, Sharpen, NR, etc. Can be adjusted through client software or web browser |
| ROI |
3 ROI |
| interfaces |
| Network |
RJ45 |
| Functions |
| Remote monitoring |
IE scan, CMS remote control |
| Online Connection |
Simultaneous monitoring support for up to 4 users; Supports multi-stream streaming |
| Network Protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP, FTP |
| Interface Protocol |
ONVIF |
| Depolama |
Ağ uzaktan depolama |
| Smart alarm |
Motion alarm |
| Smart Analysis |
Field violation, Motion detection, Line crossing violation, Sabotage etc. |
| PoE |
There is |
| IR Distance |
30 m |
| Waterproofing certificate |
IP66 |
| General |
| Power source |
DC12V / PoE |
| Power consumption |
<2,5 W , 6W (IR Açık) |
| Working environment |
-20 ° C ~ 50 ° C,% 10 ~% 90 nem |
| Dimensions |
Φ 87 * 219 mm |
| Weight |
595 gr |
| Setup |
Wall mounting, Ceiling mounting |
