Model
|

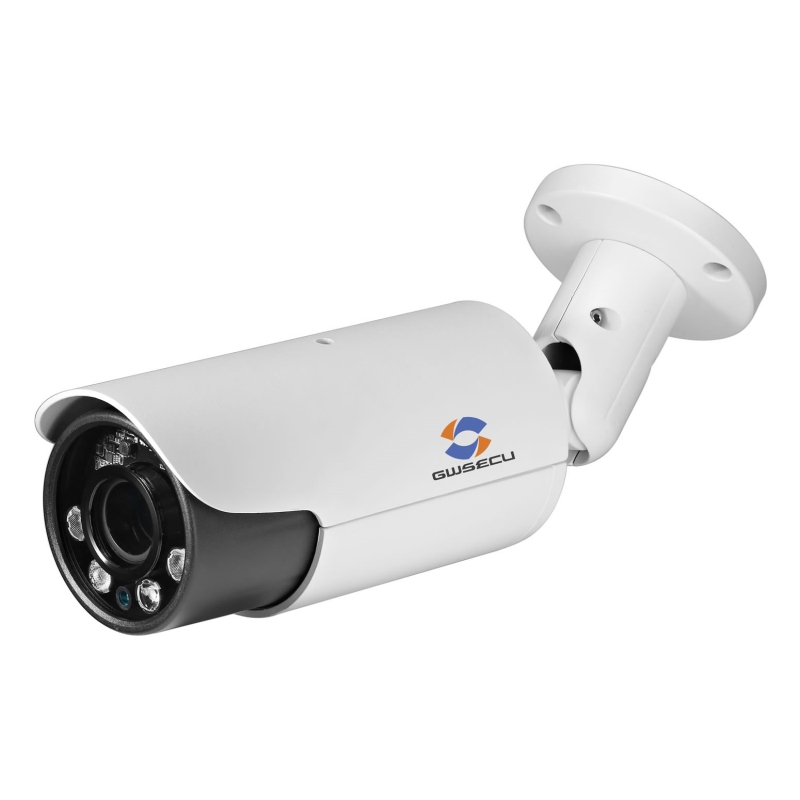

GWH-HW67AC80-LDP
|
|
Camera
|
|
Image sensor
|
1 / 1.9 "2.38M piksel Progresif Tarama CMOS
|
|
Active Pixel
|
1945 1225 (V) x (H)
|
|
Elektronik Shutter
|
1 / 5s 1 / 50000s için
|
|
Mini. Lighting
|
Color: 0005Lux / F1.2; / B: 0.0005Lux / F1.2;
|
|
Signal to Noise Ratio
|
> 50dB
|
|
Day / Night Mode
|
Automatic dual IR-Cut filter
|
|
Take Control
|
Automatic / Manual
|
|
White balance
|
Automatic / Manual
|
|
WDR Dynamic Range
|
110dB
|
|
Lens
|
3.6-10mm @ F1.5 Vari-odak Lens
|
|
Max IR Distance
|
30m4 adet 28mil LED
|
|
Video
|
|
Video Compression
|
H.265 (main profile) /H.264(baseline main profile, high profile) / MJPEG
|
|
Video Bit Rate
|
Main Flow: 200Kbps ~ 12Mbps
Bottom Flow: 100kbps ~ 6Mbps
|
|
Image resolution
|
1080P (1920 × 1080) / 720p (1280 × 720) / D1 (704x576) / CIF (352x288)
|
|
Frame Rate
|
Main Flow: 1920x1080 (1 ~ 25 / 30fps)
|
|
YG
|
Bottom Flow: 1280x720 (1 ~ 25 / 30fps)
|
|
|
Up to 8 fields
|
|
Privacy Mask
|
Up to 4 areas
|
|
Audio
|
|
|
Audio Compression
|
G.711a /G.711u 8kbps 8kbps
|
|
Audio I / O
|
1ch 3.5mm Line INPUT / 1CH 3.5mm (Built-in MIC)
|
|
Network
|
|
Ethernet
|
RJ-45 (10 / 100baSE-T)
|
|
Ağ Protokolü
|
IPv4 / IPv6 HTTP, HTTPS, TCP / IP, UDP, UPnP ICMP IGMP SNMP RTSP RTP SMTP NTP, DHCP, DNS PPPOE DDNS FTP IP Filter QoS Bonjour802.1x P2P cloud
|
|
Relevance
|
Linux / Windows C / C ++ SDK / ONVIF v2.42 / CGI API
|
|
Maximum User Access
|
10 users
|
|
Smart phone
|
iPhone iPad Android
|
|
Auxiliary Interface
|
|
Restart key
|
YES
|
|
Memory Slot
|
TF Card Max 64GB
|
|
RS485
|
Yes (half-duplex)
|
|
Alarm Girişi
|
1ch NC / NO
|
|
Alarm Output
|
1ch 120VAC 1A / 24VDC 1A
|
|
Video çıkışı
|
1chBNC75 ohm
|
|
General
|
|
Power source
|
DC 12V ± 10%
|
|
Power consumption
|
<10W
|
|
PoE
|
YesIEEE802.3af
|
|
Working environment
|
-40ºC ~ + 60ºC Nem% than95 daha az (Non-Yoğunlaşma)
|
|
Durability Level
|
IP66
|
|
Dimensions (mm)
|
286 x 79 x 86
|
|
Weight (kg)
|
0.98
|
