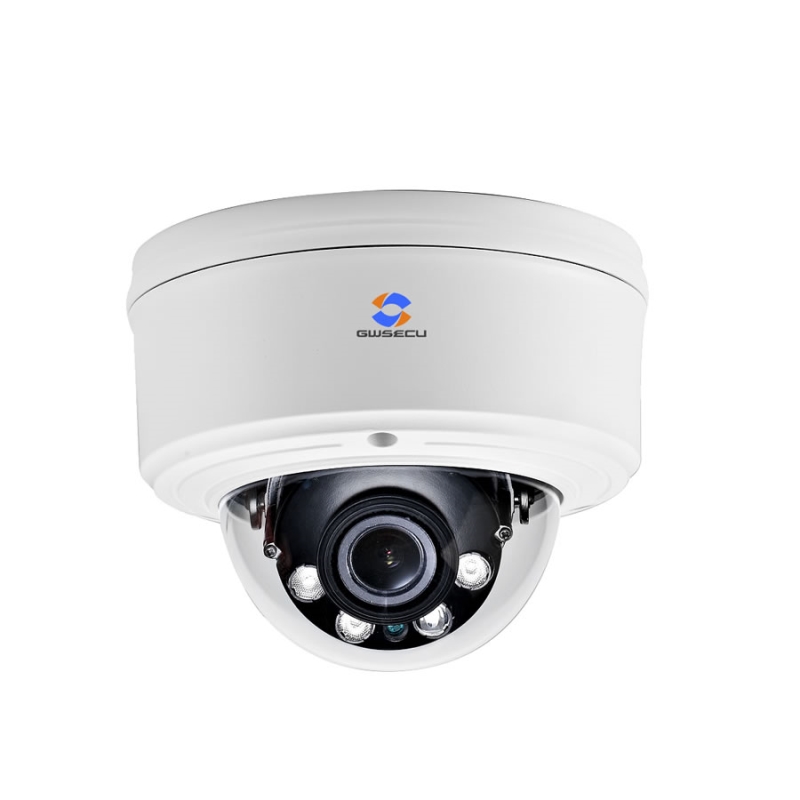

Model
|
GWH-HD55AC80-LDP
|
|
General
|
|
Main Processor
|
TI DaVinci High Performance DSP
|
|
OS
|
Embedded LINUX
|
|
Source
|
Simultaneous remote monitoring, local recording and remote control
|
|
user interface
|
WEB VSS NVR APP
|
|
Camera
|
|
Image sensor
|
1 / 2.8 "2.0megapixel Progressive sony CMOS Sensör
|
|
Active Pixel
|
1920 1080 (V) x (H)
|
|
Elektronik Shutter
|
1 / 5s 1 / 50000s için
|
|
Mini. Lighting
|
Renk: 0.2Lux / F1.2; / B: 0.01Lux / F1.2; 0Lux / F1.2 (IR)
|
|
Signal to Noise Ratio
|
> 50dB
|
|
Day / Night Mode
|
Automatic dual IR-Cut filter
|
|
Take Control
|
Automatic / Manual
|
|
White Balance
|
Automatic / Manual
|
|
Lens
|
2.8mm ~ 12mm / F1.4 variable focus lens
|
|
Max IR Distance
|
30m
|
|
Digital Denoise
|
2B Dijital Denoise
|
|
Video
|
|
Video Compression
|
H.264 / MJPEG Optional
|
|
H.264 encoding Type
|
H.264 baseline / H.264 Main Profile / H.264 High Profile Optional
|
|
Video Bit Rate
|
Main Flow: 200bps ~ 12Mbps
Bottom Flow: 100kbps ~ 6Mbps
|
|
Image resolution
|
1080P (1920 × 1080) / 720p (1280 × 720) / D1 (704 × 576/704 × 480)
|
|
Encoding Rate
|
Ana Akış: 1080P / 720P (1 ~ 25fps / 30fps)
|
|
Extra Flow: D1 / CIF: (1 ~ 25fps / 30fps)
|
|
Video Format
|
PAL / NTSC
|
|
Audio
|
|
Audio Compression
|
G.711a / G.711u / RAW_PCM Opsiyonel
|
|
Audio bit rate
|
G.711a (8kbps) /G.711u (8kbps) / RAW_PCM (16kbps)
|
|
Audio input
|
1-kanal 3.5mm ses arabirimi MIC IN / Line GİRİŞİ
|
|
Audio output
|
1-kanal 3.5mm ses arabirimi (hat level600Ω)
|
|
Network
|
|
Ethernet
|
RJ-45 (10 / 100baSE-T)
|
|
Network Protocol
|
IPv4 / IPv6, RTSP / RTP / RTCP, TCP / UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP
|
|
Ortak özellikler
|
One-touch Video cover Motion Alarm protect barring Flicker Dual-stream Heartbeat Password Reset
|
|
ONVIF
|
0NVIF Ver.2.4
|
|
Maximum User Access
|
10 Users
|
|
Smart Phone
|
Iphone Ipad Android, Windows telefon
|
|
Remote Operation
|
Monitor Play System setting File download Log info Maintenance and Upgrade
|
|
Auxiliary Interface
|
|
Reset Reset
|
A Reset Button (after effective Be continues to hold for 3 seconds)
|
|
Memory Slot
|
TF Card Max 64GB
|
|
RS485
|
PTZ Control
|
|
Alarm Input
|
1-channel input Normally Open / Normally closed modes adjustable
|
|
Alarm Output
|
1-channel output 120VAC 1A / 24VDC 1A
|
|
Video Output
|
1Vp-p Composite Output (75 Komp / BNC)
|
|
environment
|
|
Power source
|
DC12V
|
|
Power consumption
|
<10W
|
|
Working environment
|
-40ºC ~ + 60ºC Nem% than95 daha az (Non-Yoğunlaşma)
|
|
Dimensions (mm)
|
154 × 121.5
|
|
Weight (kg)
|
0.8
|
|
İP derece
|
IP66
|
|
PoE
|
IEEE802.3af
|
