| Model |
KD-M6808N-HB |
| Name of the product |

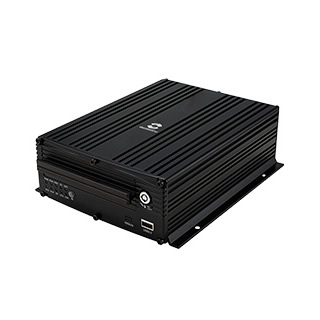

8CH 1080P Mobil NVR |
| OS |
LINUX |
| Working Interface |
Graphical Interfaces |
| Working Interface |
Graphic Interfaces Chinese / English optional |
| File system |
Property Format |
| Video Input |
8CH 1080 / 720P Digital |
| VGA Output |
1CH Support 1920 * 1080 1280 * 720 1024 * 768 Resolution |
| CVBS Output |
1 Channel PAL / NTSC Output 1.0Vp-p75 1.0 Pin Aviation Connector |
| Video Screen |
1/4/8 Screen Display |
| Video Standard |
PAL: 25frAmes / sn; NTSC: 30frAmes / sn |
| System Resources |
1080/720P |
| PAL: 200 fpsNTSC: 240 fps |
| Audio input |
8CH independent input600CH |
| Audio output |
1-channel CVBS output600Ω1.0-2.2V |
| Distortion Plus Noise |
≤-30dB |
| Recording Mode |
Audio and Video Synchronization |
| Audio Compression |
G711A |
| Görüntü Sıkıştırma |
H.264 |
| Resim Biçimi |
8 * 1080/720P |
| Video from Hard Drive |
Set 1-8 |
| Video streaming |
384Kbps-8.0Mbit / s (each channel) |
| Video from Hard Drive |
168MB-3.5GByte / hour |
| Playback Resolution |
8 * 1080/720P |
| Audio Bit Rate |
4KByte / s (her bir kanal) |
| Sound |
14MByte / hour (each channel) |
| HDD Depolama |
1 SATA2.5 "HDD Maximum capacity 2TB; |
| Alarm |
8 Channel Standalone Input. High Voltage Trigger |
| Alarm çıkışı |
2 Channel Standalone output |
| |
|
| Host Access |
Can Expand One for USB Disk Backup |
| Connection |
Extend an RJ45 Ethernet Port |
| Wifi Hot Spot |
Available |
| 4G / 3G |
Available |
| GPS |
Built-in GPS Module |
| RS232 |
Extensibleit is suitable for connection to other vehicle equipment |
| RS485 |
Extensibleit is suitable for connection to other vehicle equipment and PTZ Camera |
| İnterkom |
Extend Intercom Module Inside |
| G sensor |
Expand the G-Sensor Module |
| CANBUS |
Canbus Module Extends Inside |
| Power consumption |
DC8-36V% 5 ≤12W |
| Operating temperature |
-20 ~ 85 ℃ / ≤80% |
| Hour |
Internal Clock Calendar |
| Product size |
245 (L) * 190 (W) * 71 (H) mm (with holder) |
| Product Weight |
2.8KG (without HDD) |
| Package |
5 sets each in a box / Canton |
| Box Size |
245 (L) * 190 (W) * 71 (H) mm |
| Carton size |
650 (L) * 375 (W) * 255 (H) mm |
| Carton Weight |
14kgs / 18kgs (without HDD) |
| Optional functions |
GPS, 4G, WIFI Hot Spot |
